Morris Adjmi Architects

837 Washington

52,000 square feet
6 stories
New York, New York
2014

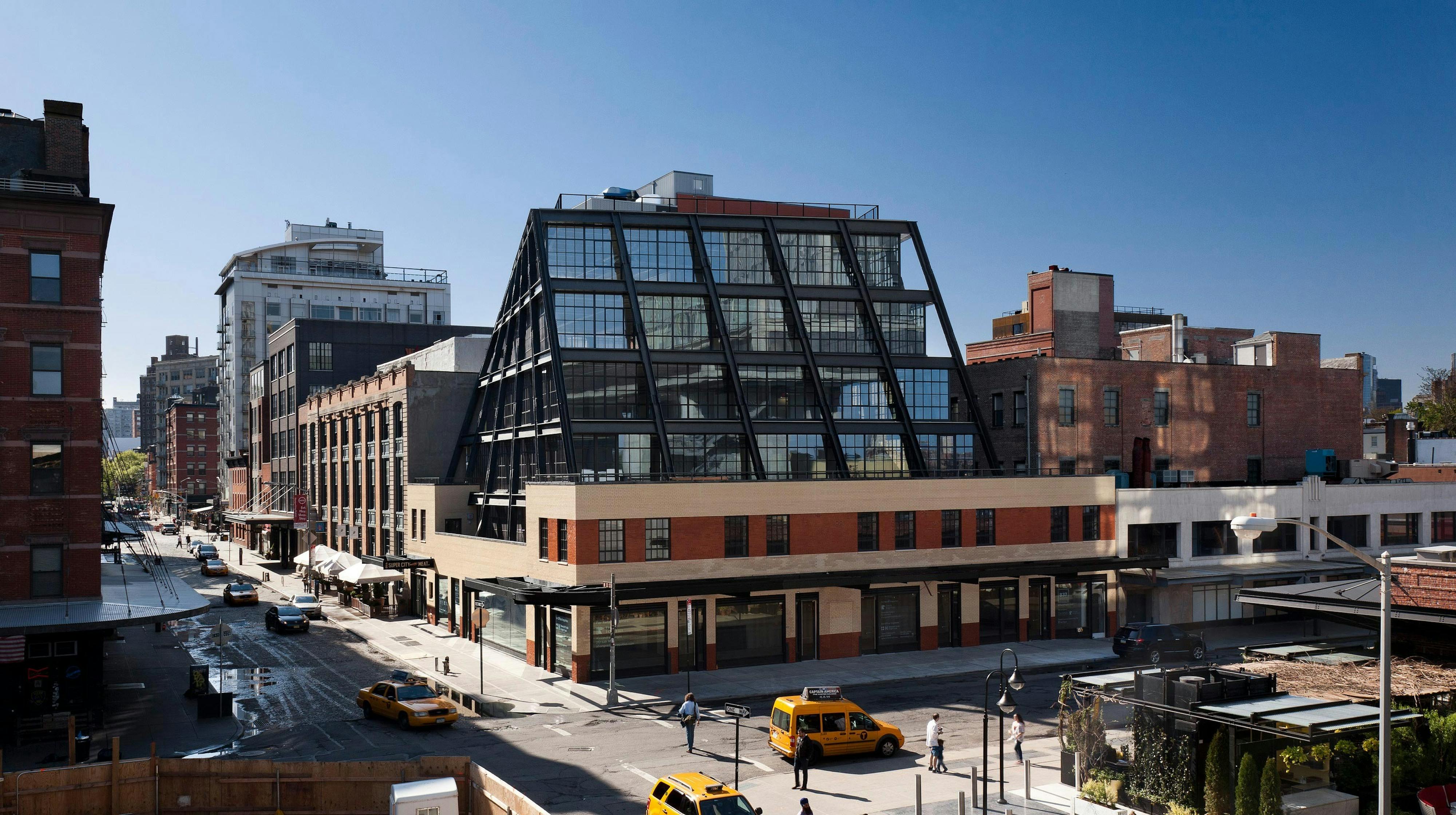

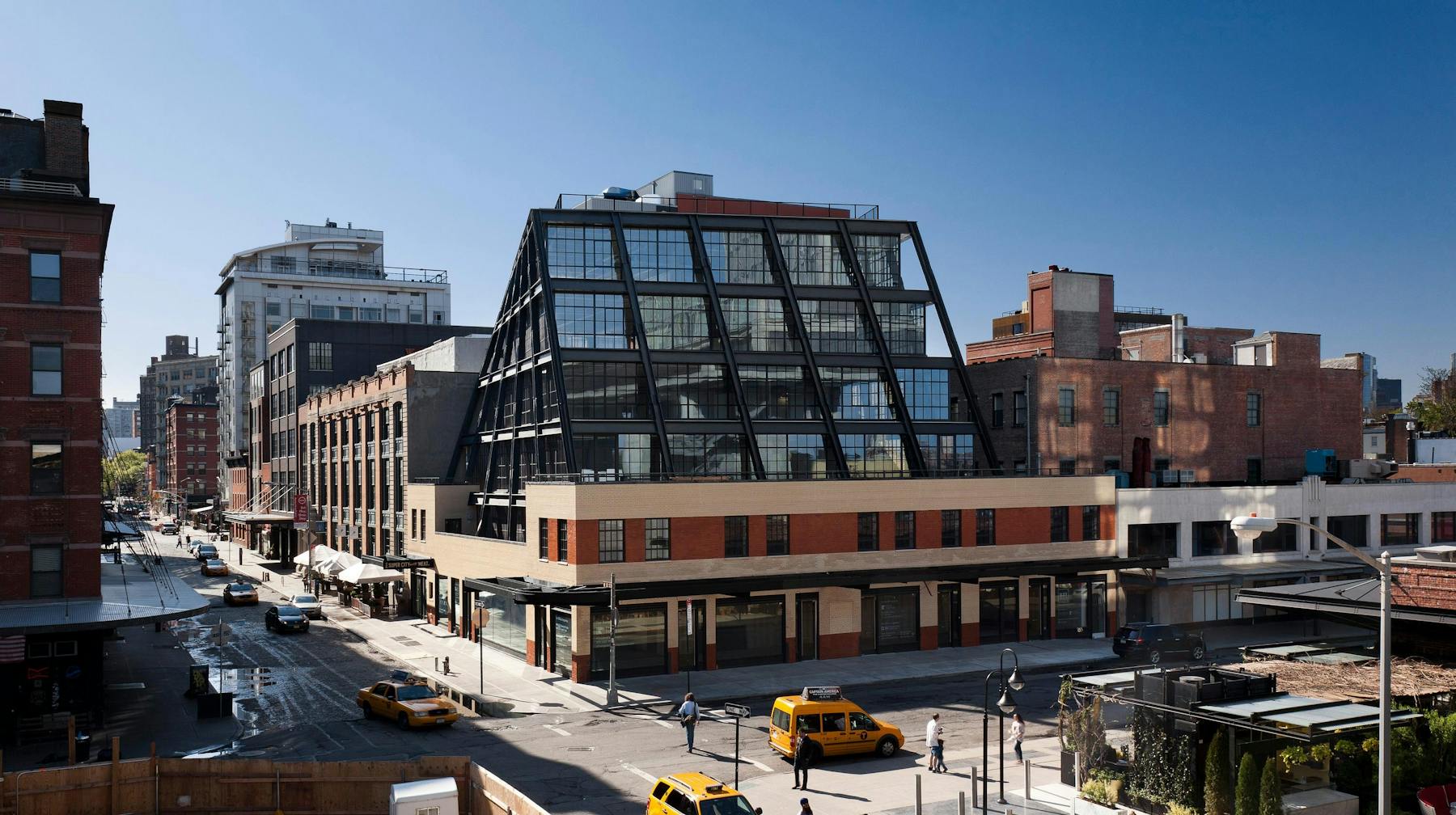

837 Washington Timelapse Stillshot

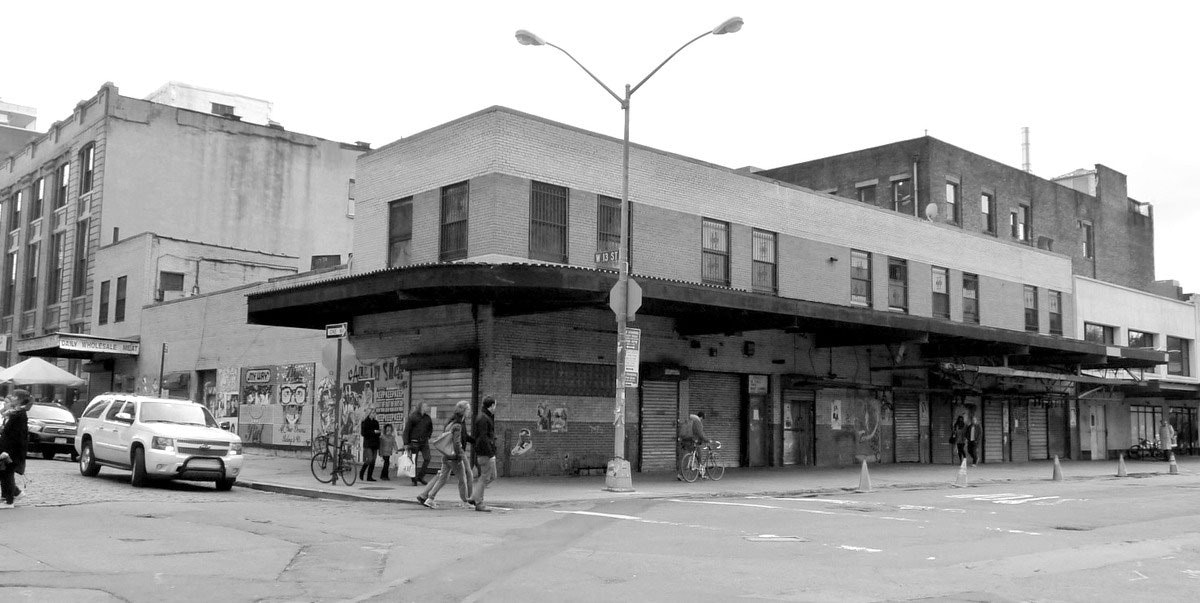

Located at a point of convergence between the rigid street grid of the 1811 Commissioners’ Plan and the older, more picturesque streets that define Greenwich Village, 837 Washington Street embodies the cultural, economic, and political forces that shape New York City. The project repurposes a two-story structure built in 1938, during the last major phase of historic development in the Gansevoort Market area, which was spurred by the completion of the West Side Elevated Line.

Building Facade Design

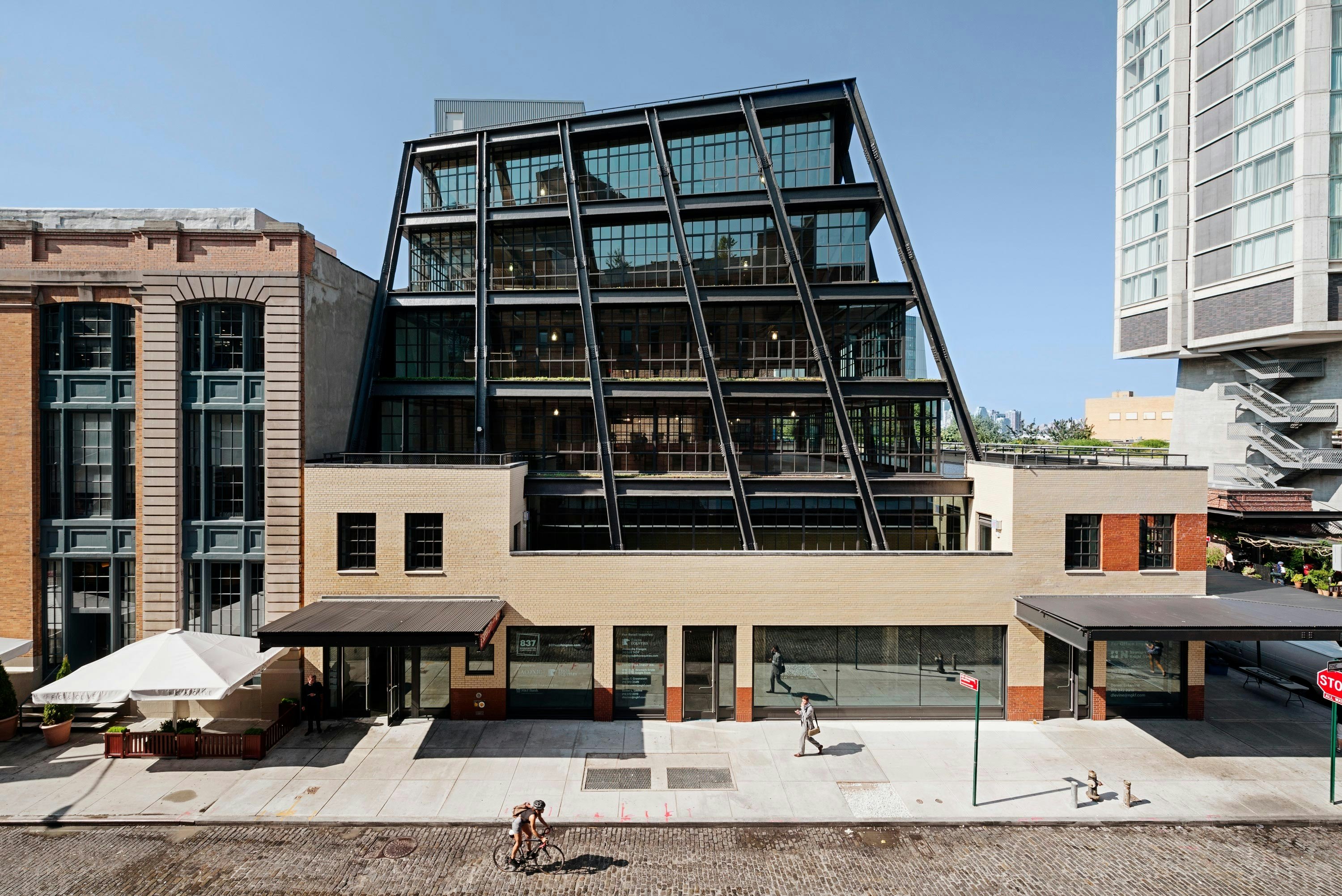

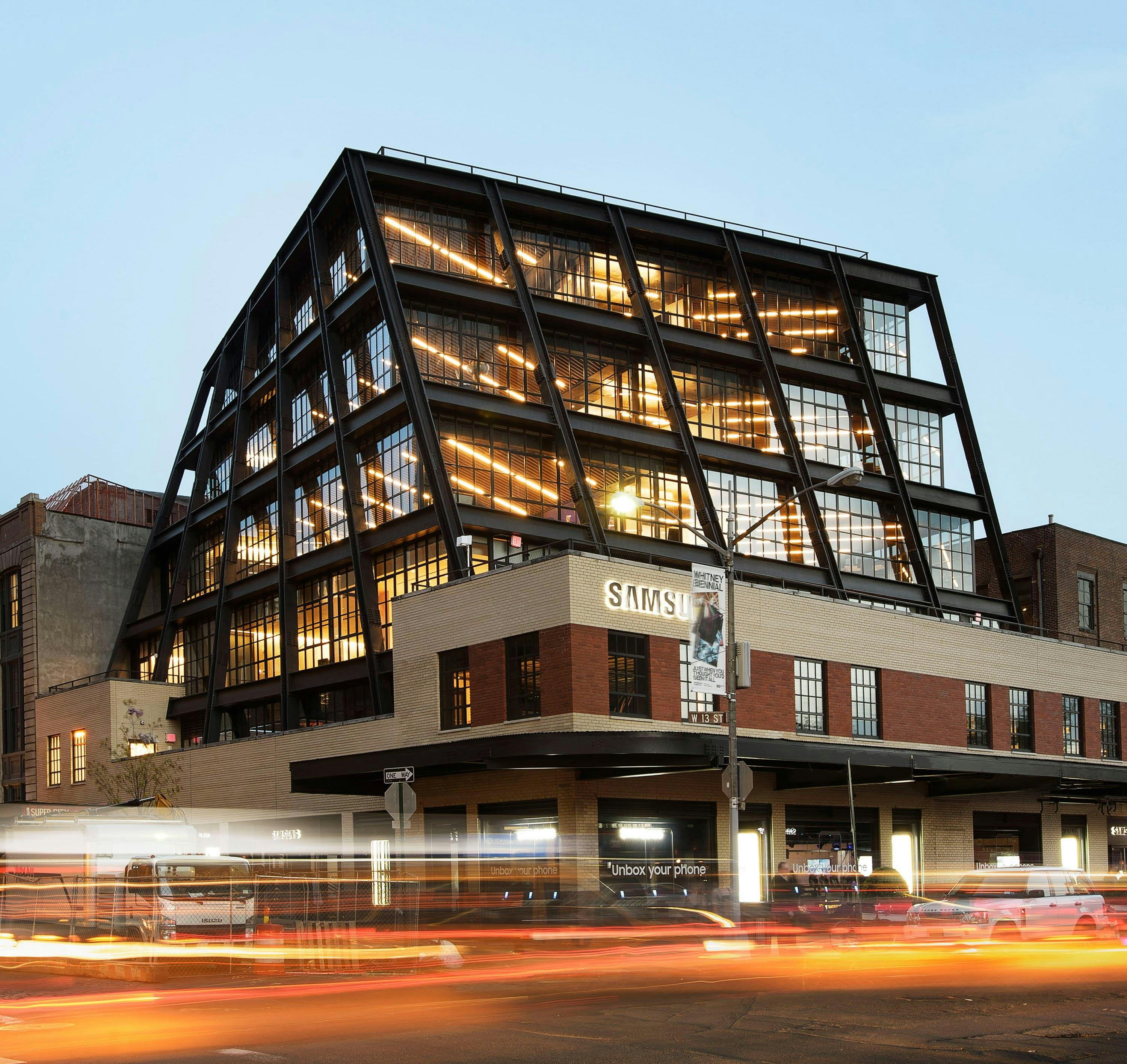

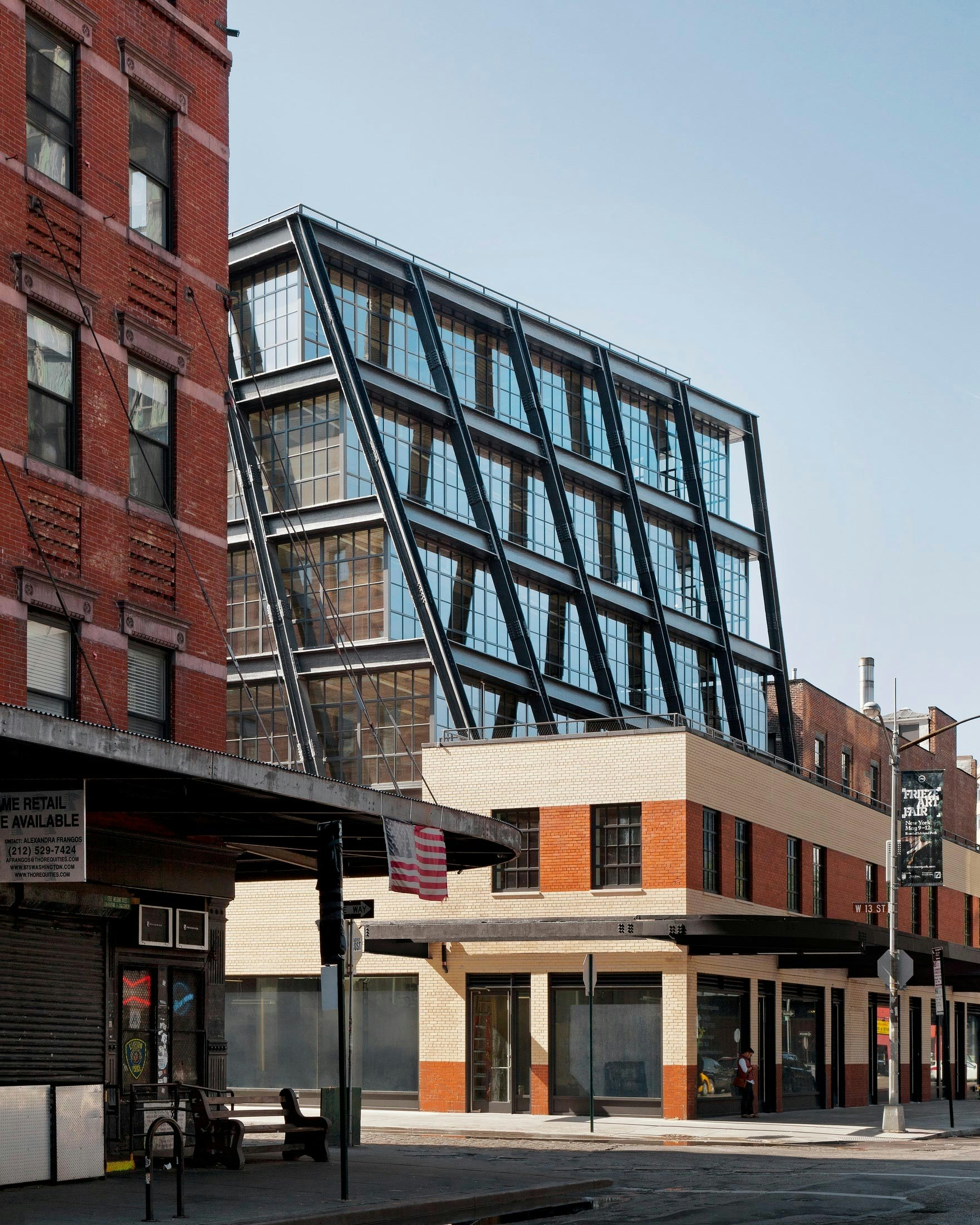

To design a building that both stands out and fits in, the project was treated as two distinct but coexisting buildings: one that stands out—a new twisting steel and glass tower—and one that fits in—the restored Moderne-style brick warehouse. Although the 1938 building appears quite ordinary, it is an exemplar of the structures that define the Gansevoort Market Historic District.

To maintain this distinct sense of place, the restoration retains its gritty charm, as well as its architectural idiosyncrasies, including the unique two-tone brick facade and the ad hoc arrangement of garage doors and loading bays, which now functions as a dynamic series of storefront windows.

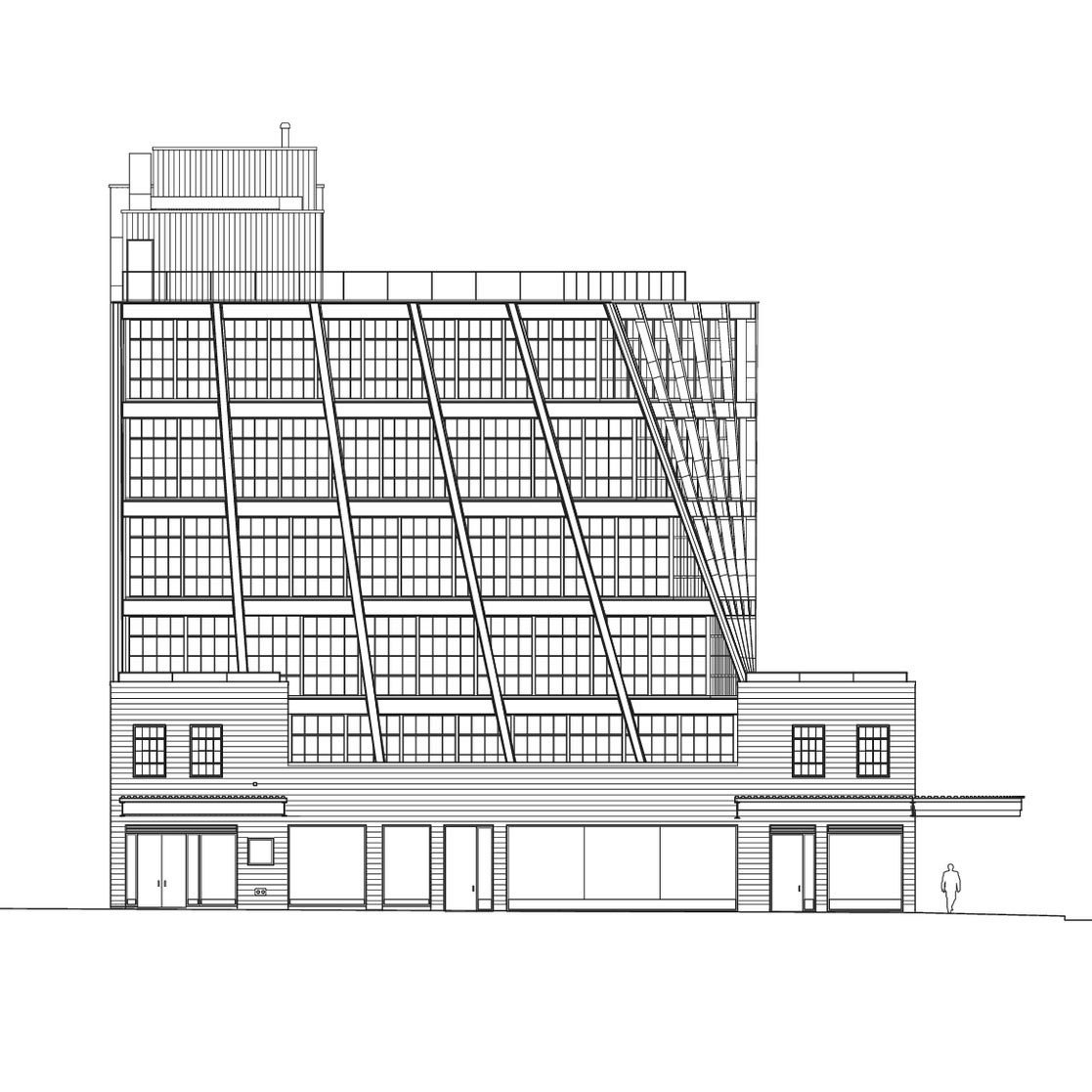

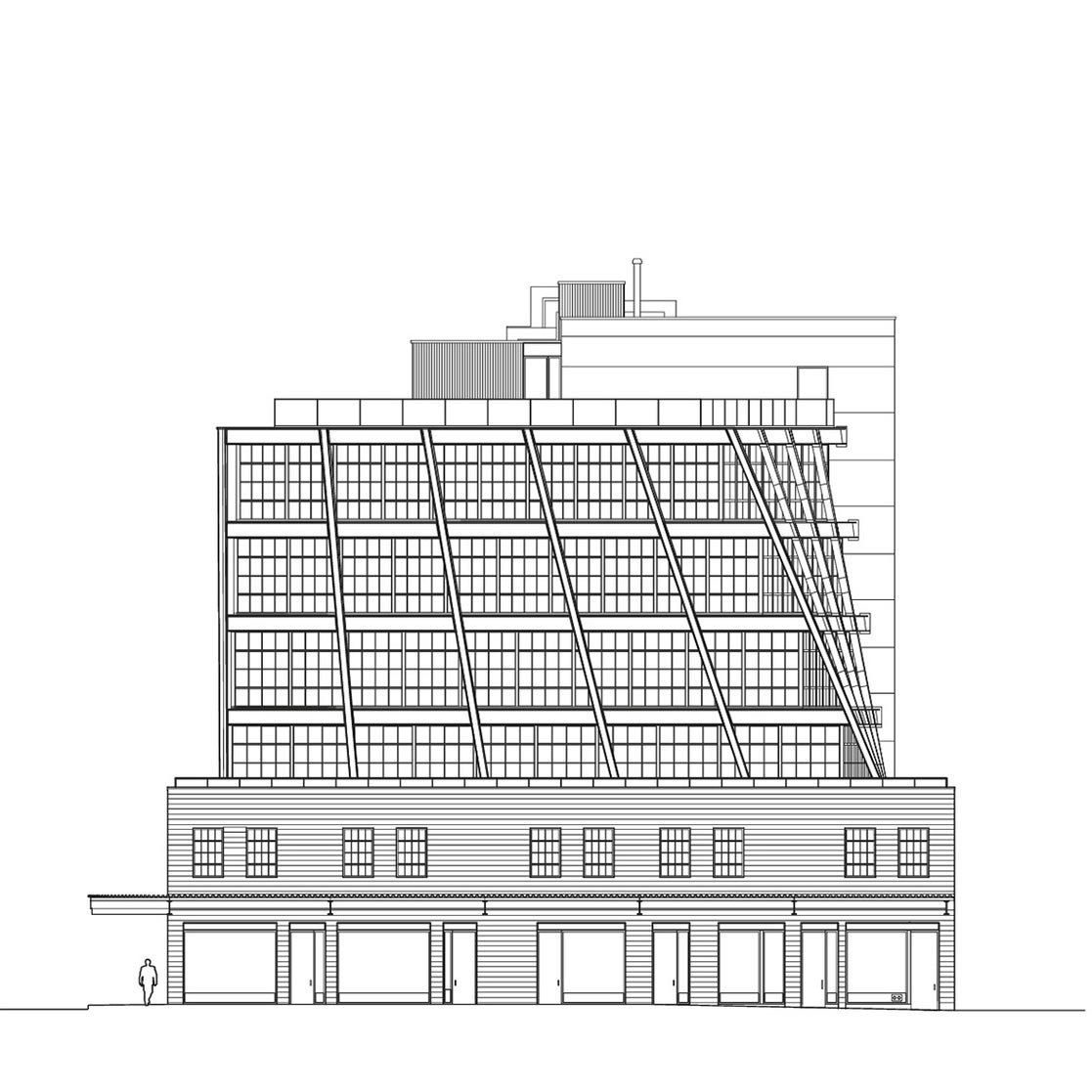

A new glass and steel canopy evokes the original cantilever (sans hanging carcasses), and second-story windows have been replaced with historically appropriate factory-style sashes. All of these features influence the design of the tower above: the mullions that divide the tower’s curtain wall are identical in proportion to the windows below, and the brick-clad core uses colored mortar and soldier courses to reference the colored brick banding on the original building.

837 Washington Architecture photo

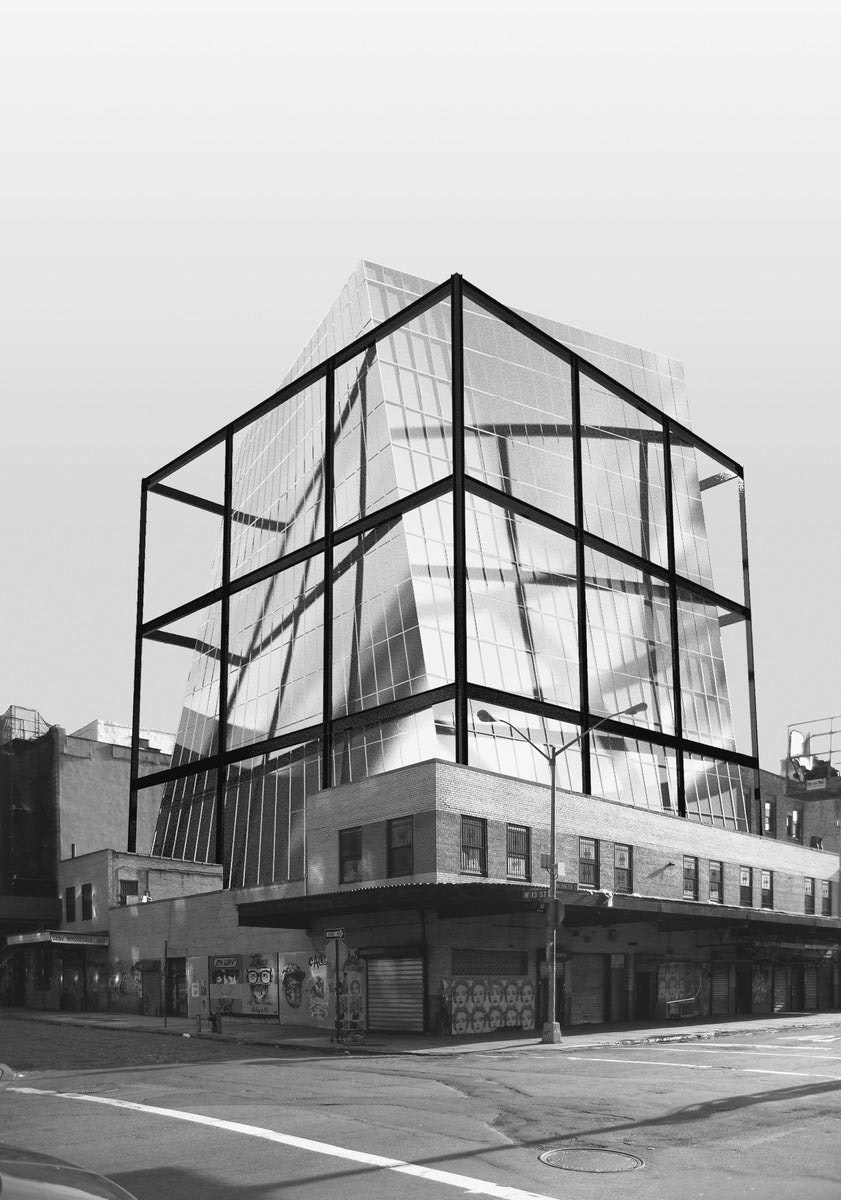

Though informed by its base, 837 Washington’s tower stands above it in stark contrast. With its pronounced setback from the lower building, the design respects this difference, and the four-story addition reinforces the original structure’s contribution to the character of the historic district yet allows the tower to make its own contribution.

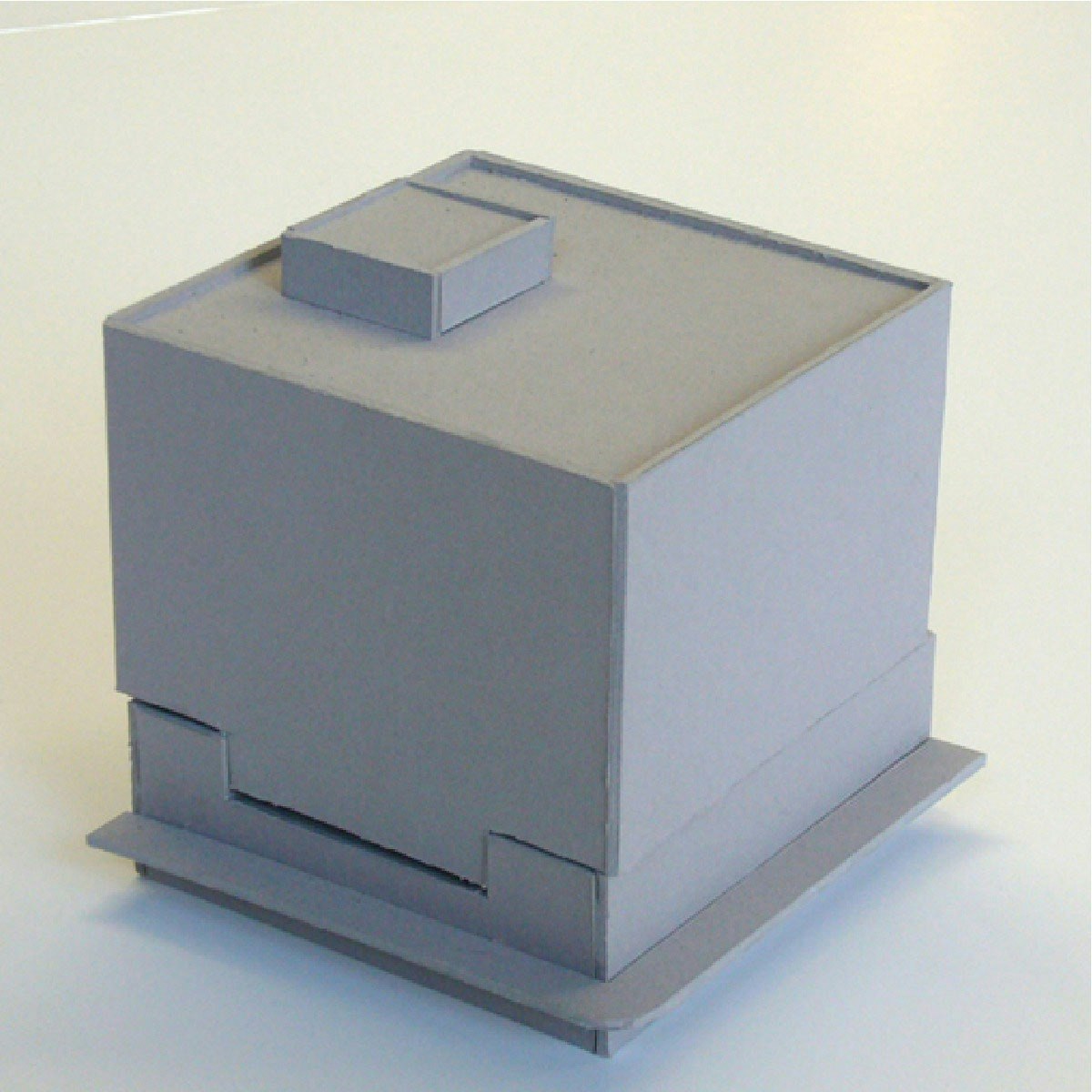

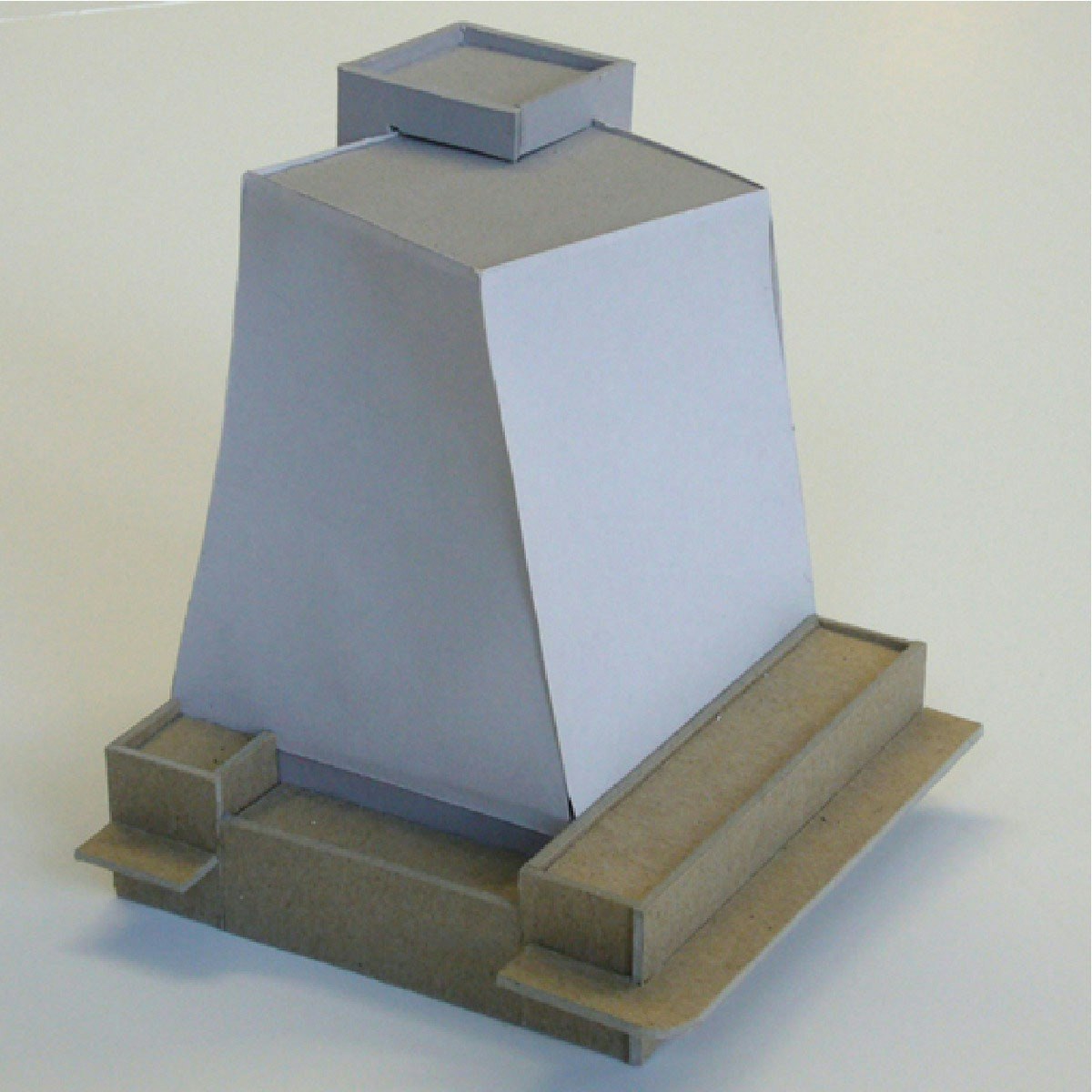

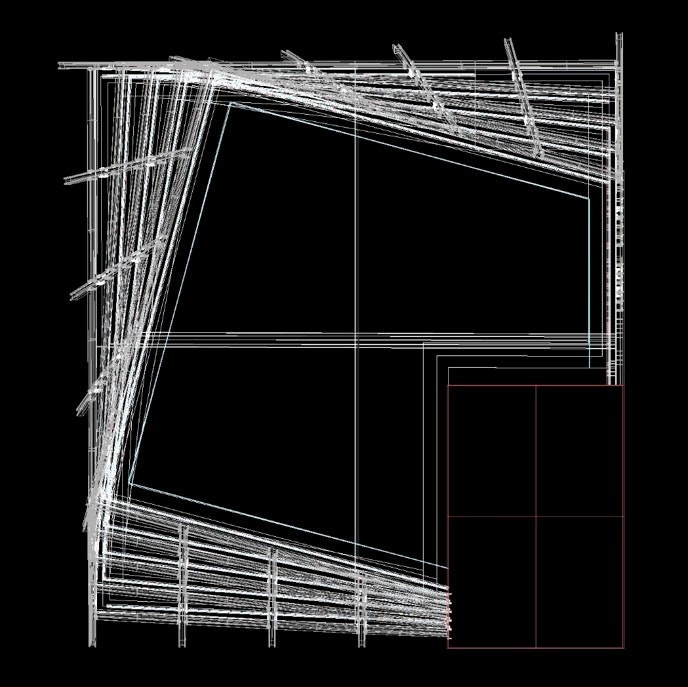

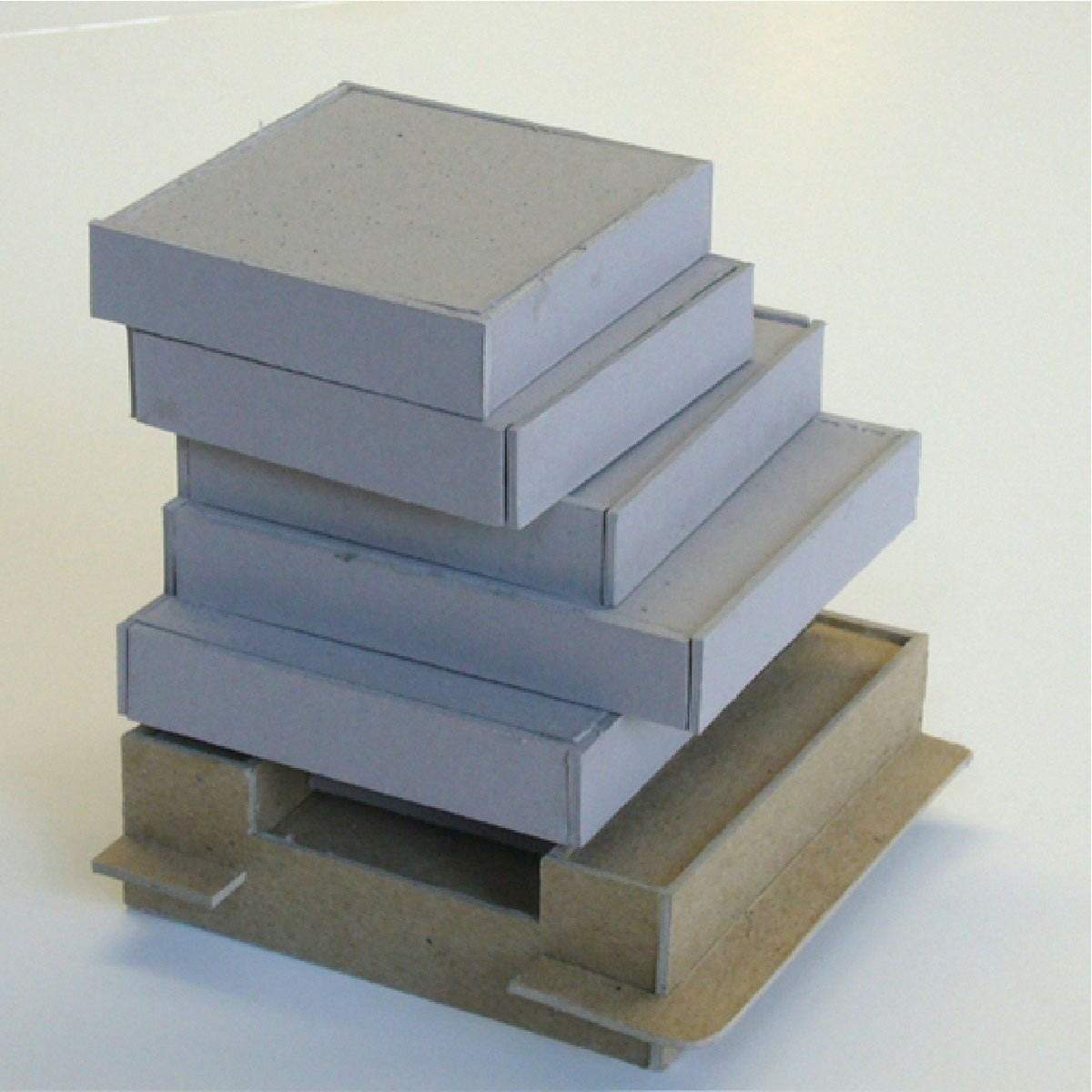

Its form is drawn from the broader context of the city. The rotation of the floor plates—which was refined in dozens of physical models and recalls Richard Serra’s torqueing steel sculptures—embodies the collision of Manhattan’s two street grids and the rotation of the city’s gridiron plan in Greenwich Village.

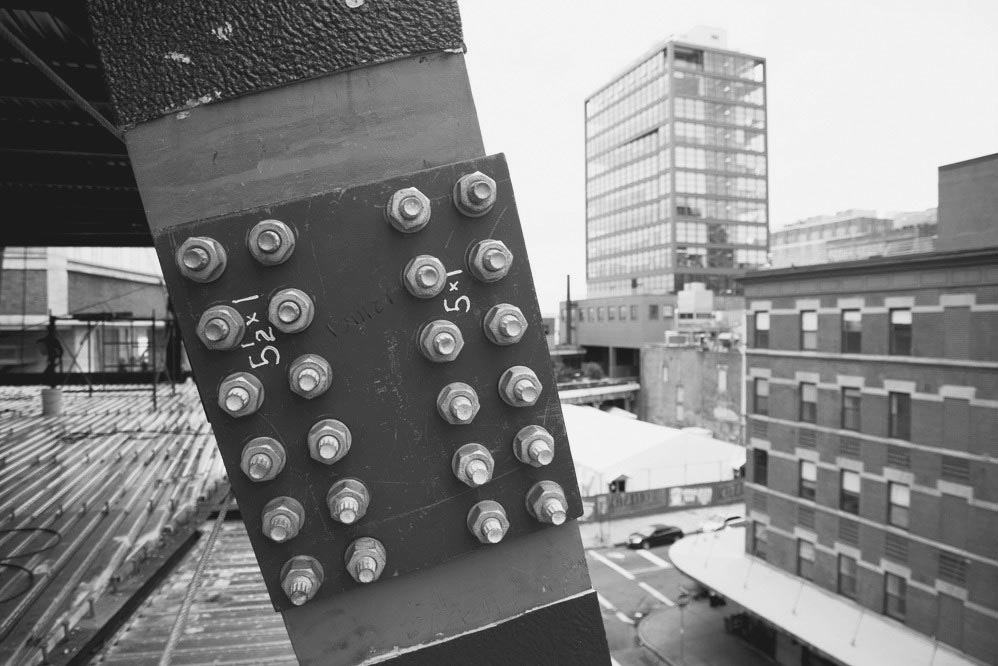

The angled structural exoskeleton, based on engineering principles that recall those of old railroad structures, evokes the High Line while eliminating the need to divide the interior spaces with load-bearing walls or columns.

Design & Construction

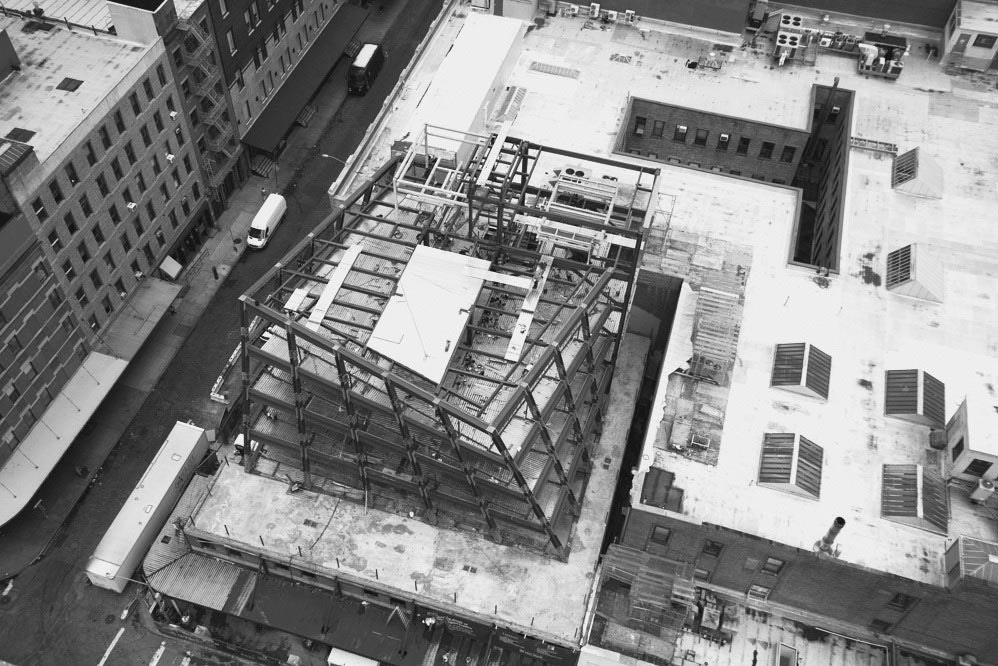

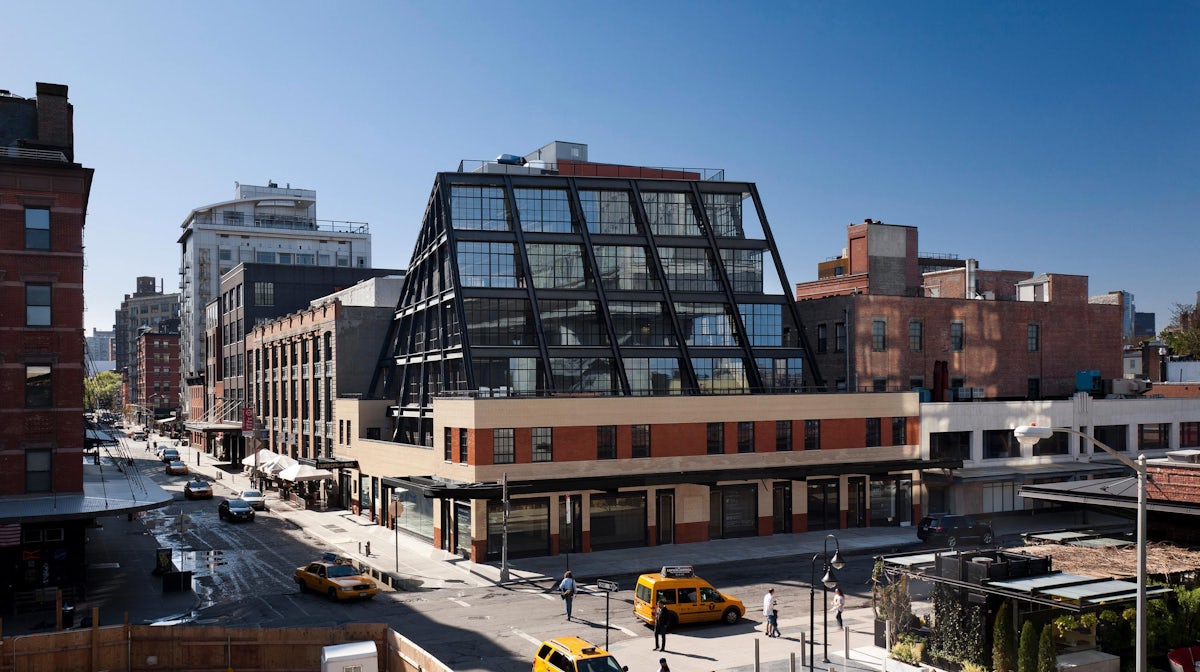

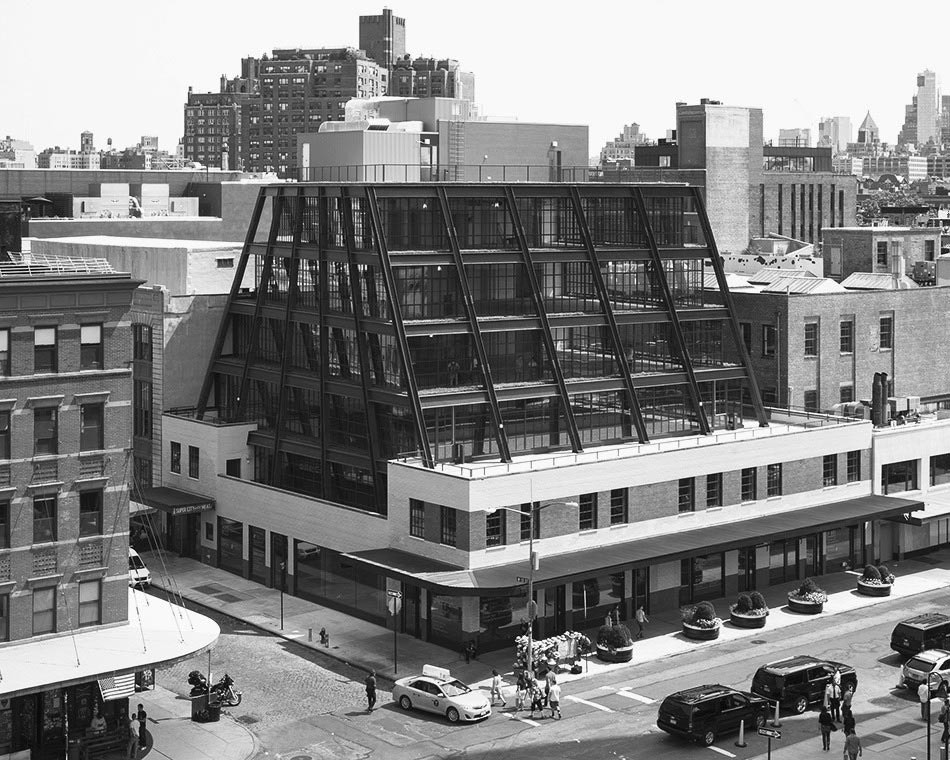

Aerial View of 837 Washington

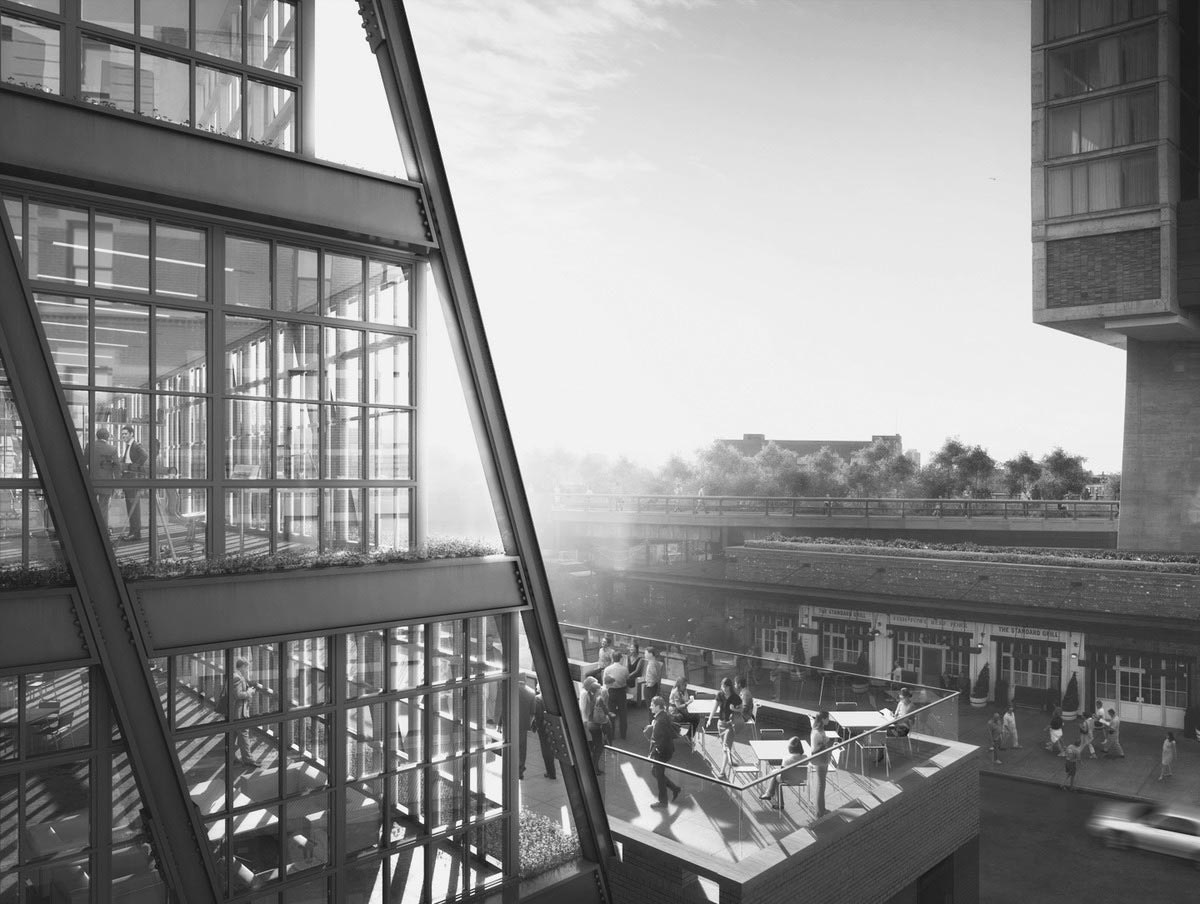

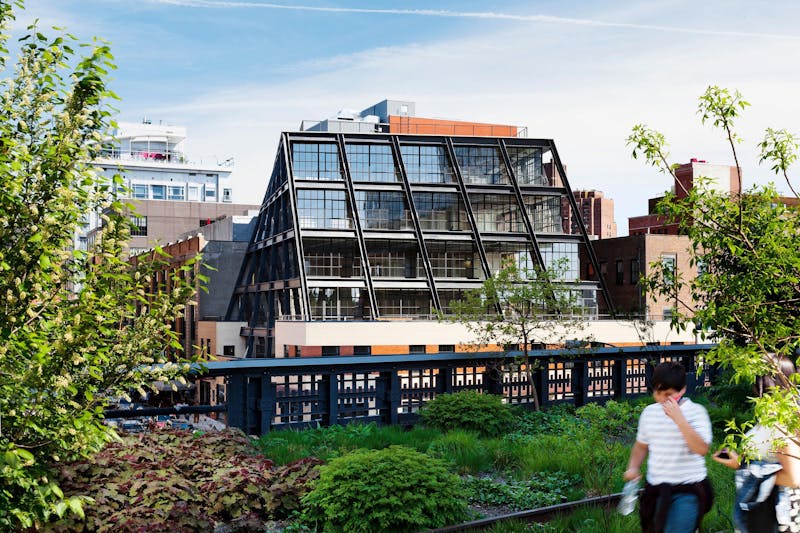

View of 837 Washington from the Highline in NYC

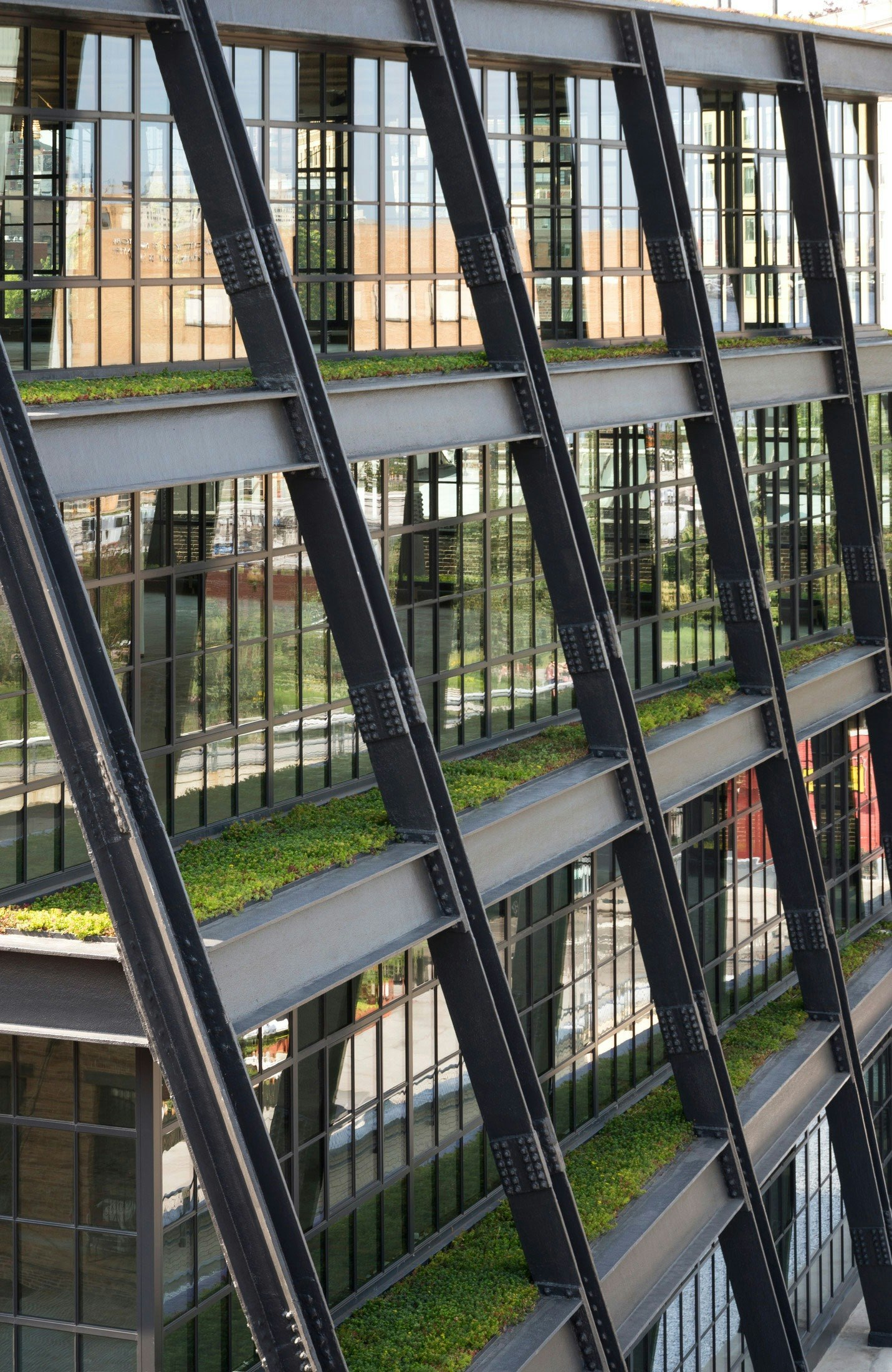

The High Line’s juxtaposition of native planting and industrial railroad trestle informed a similar relationship between the window wall and structural steel frame at 837 Washington. Taking a cue from the elevated park, beds of native plants fill the angled spaces created by the rotating floor plates. This integrated landscaping enlivens the interior spaces and reduces stormwater runoff.

Native planting and industrial railroad trestles

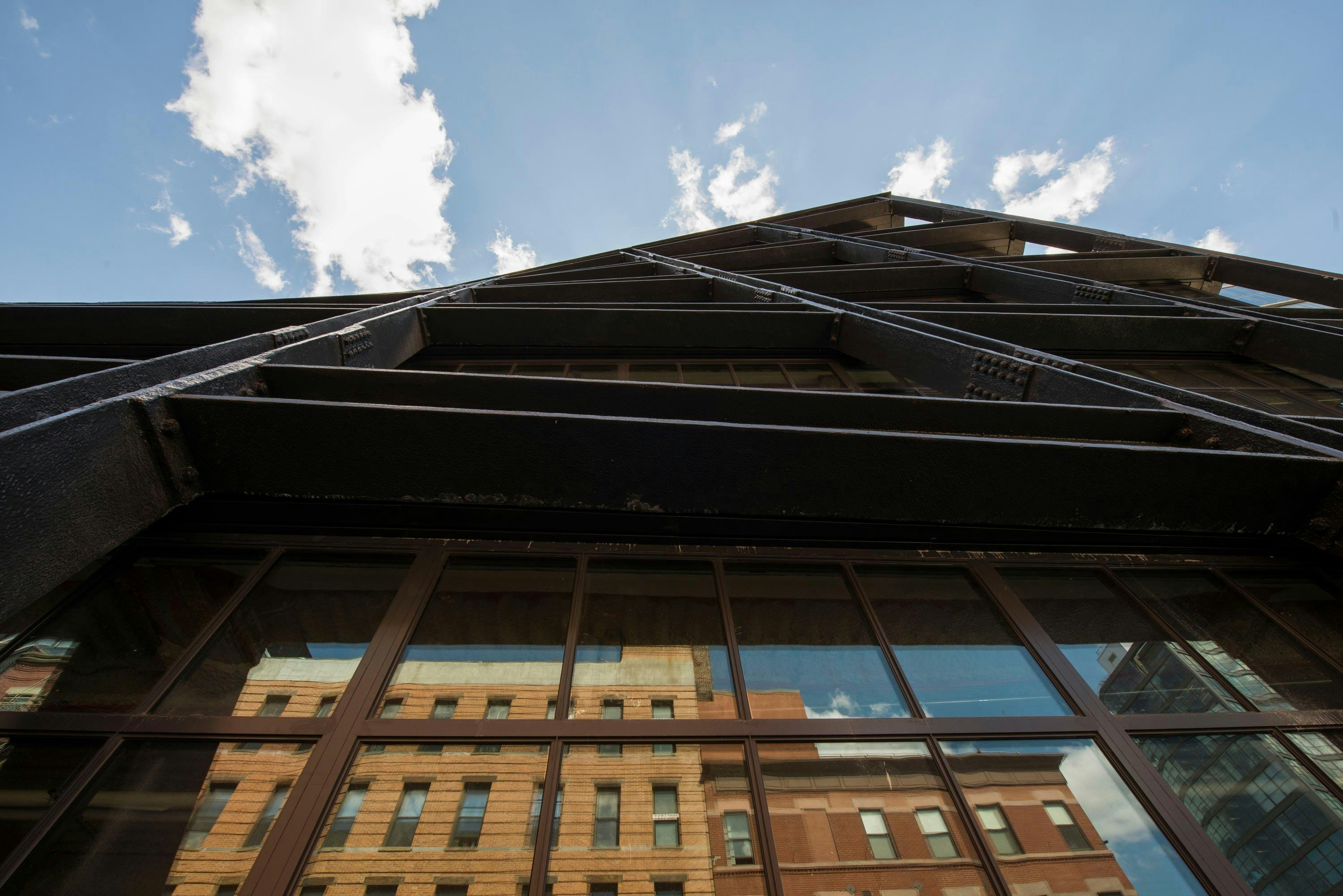

View of 837 Washington looking up

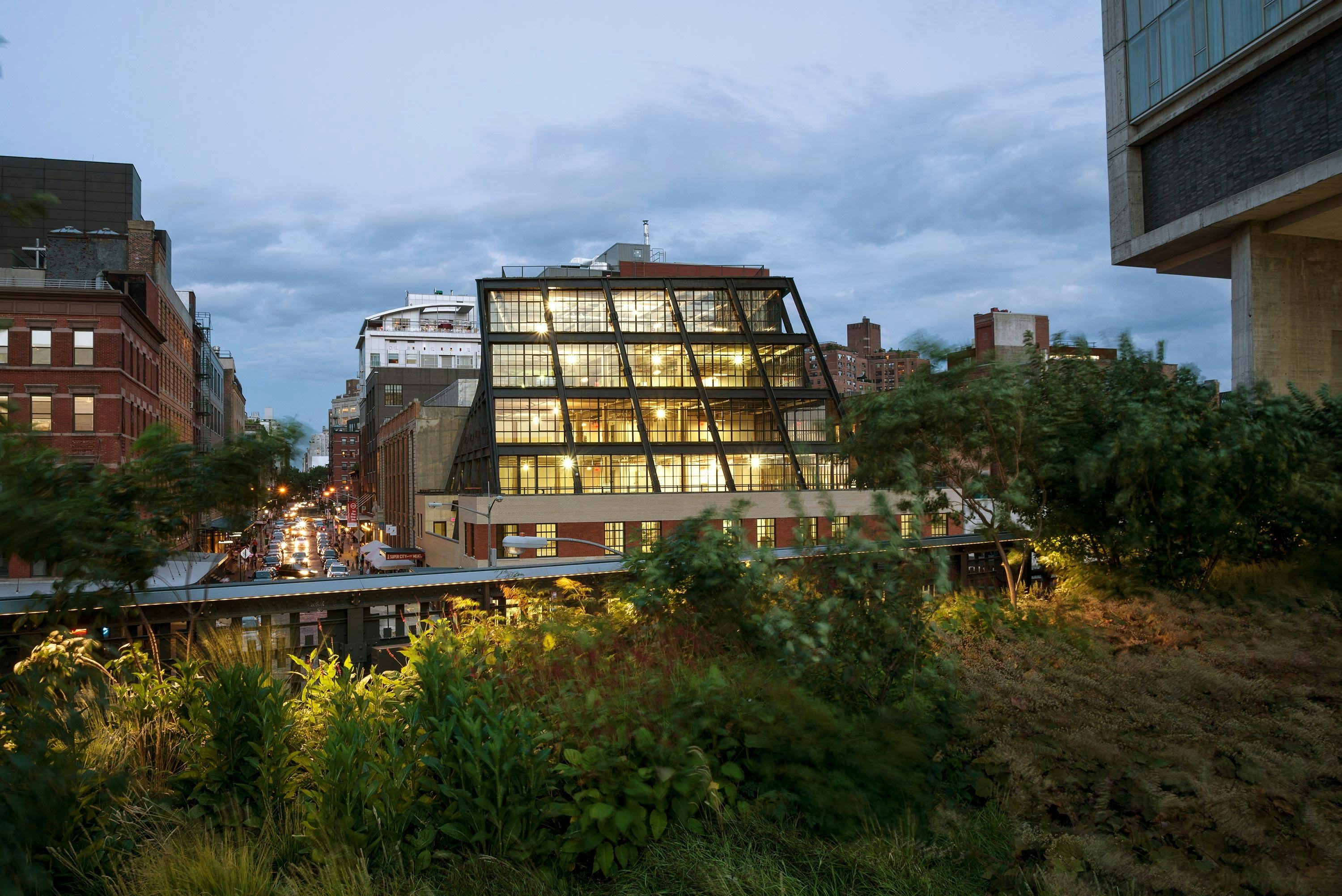

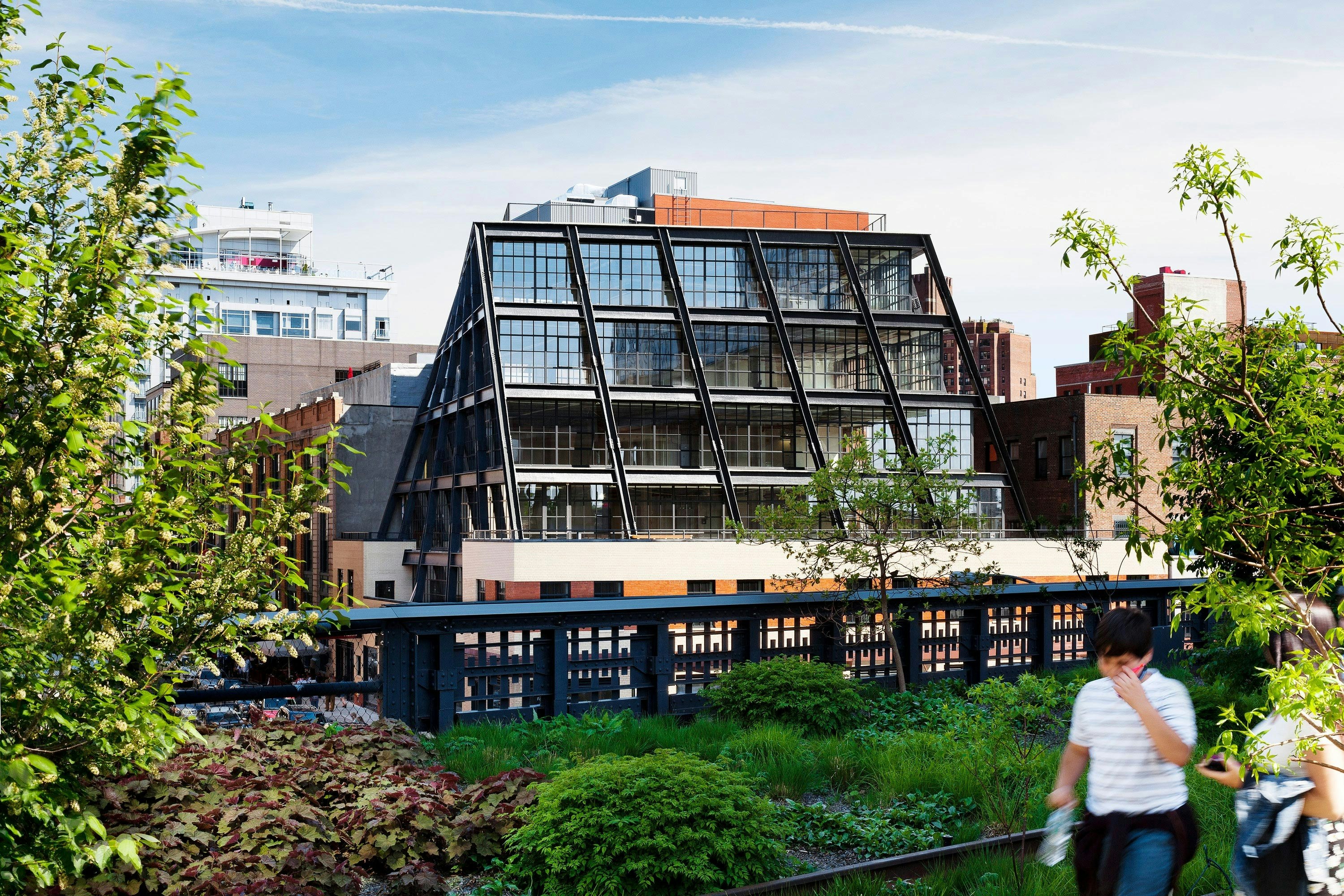

View of 837 Washington from the High Line
